Product number:
941210010
Exhaust air unit, type AEH-600
with bag filter as pre filter
Exhaust air unit, type AEH-600
with bag filter as pre filter
€2,458.00*
Delivery time on request
Downloads
Exhaust air unit, type AEH-600
with bag filter as pre filter
EAN: 4251906208113
The filter housing is made of powder-coated steel sheet. The filteringelement can be taken off and changed easily by means of a big service
door. The mains connection such as the main switch are laterral.
The unit is equipped with a big silent fan for outblowing operations.
The unit can be built under the working place regarding the low height.
Due to the small size of the unit it can be placed at nearly any place. The
inlet spigot (size 100) is placed on the top of the unit (corresponds to the
normal connection size of most of the laser machines). The outlet spigot
(size 100) is at the rear side of the unit. The outblowing hose can easily be
installed by means of a threaded hose clamp.
The separation degree is higher than 85 %. This result permits that the prefiltered
air can be led outside promptly in most of the cases.
Properties
| Intake manifold (mm): | 100 |
|---|---|
| Volumetric flow (m³/h): | 615 |
| max. pressure (Pa): | 2.800 |
| Engine power (kW): | 0,3 |
| Supply voltage (V): | 230 |
| Connection frequency (Hz): | 50 |
| Current consumption (A): | 2,15 |
| Automatic cleaning: | Nein |
| main filter: | Taschenfilter |
| Separation efficiency (%): | > 85 |
| Ausblas: | 100 |
| Sound level (dB(A)): | 66 |
| Weight (kg): | 29 |
| Width (mm): | 365 |
| Depth (mm): | 376 |
| Height (mm): | 646 |
| Colour: | RAL 7035 (Lichtgrau) |

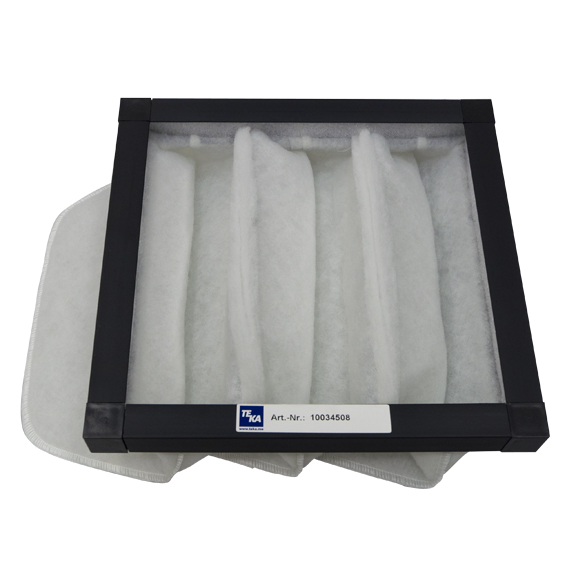

Replacement parts
