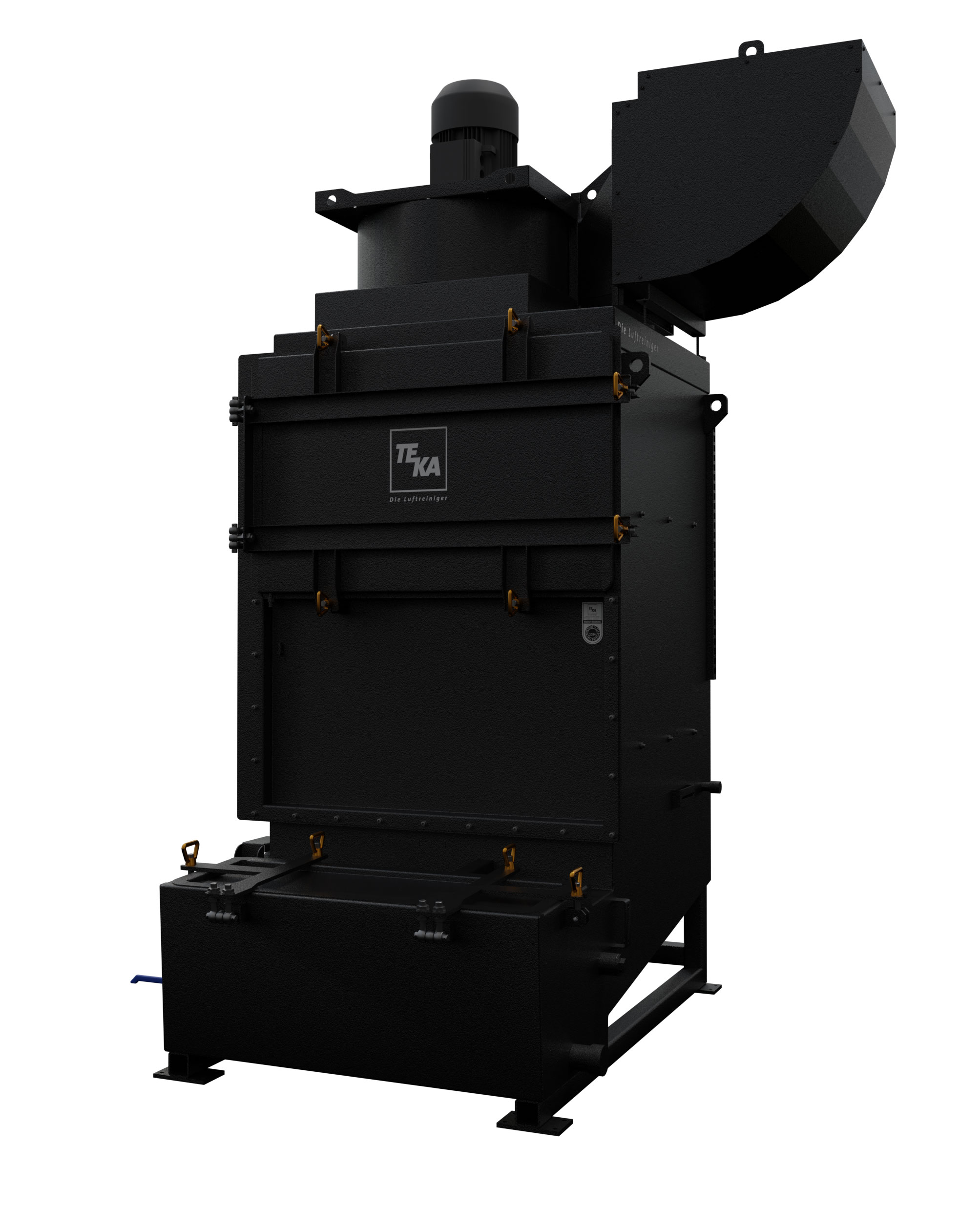

Wet cyclone separator
EAN: 4251906208717
The advantages of the unit are its simple and trouble-free operation. Pumps or jets which could create troubles are not used.The air is cleaned by swirling the dust with water. The particles in the air flow are enclosed by water and bonded.

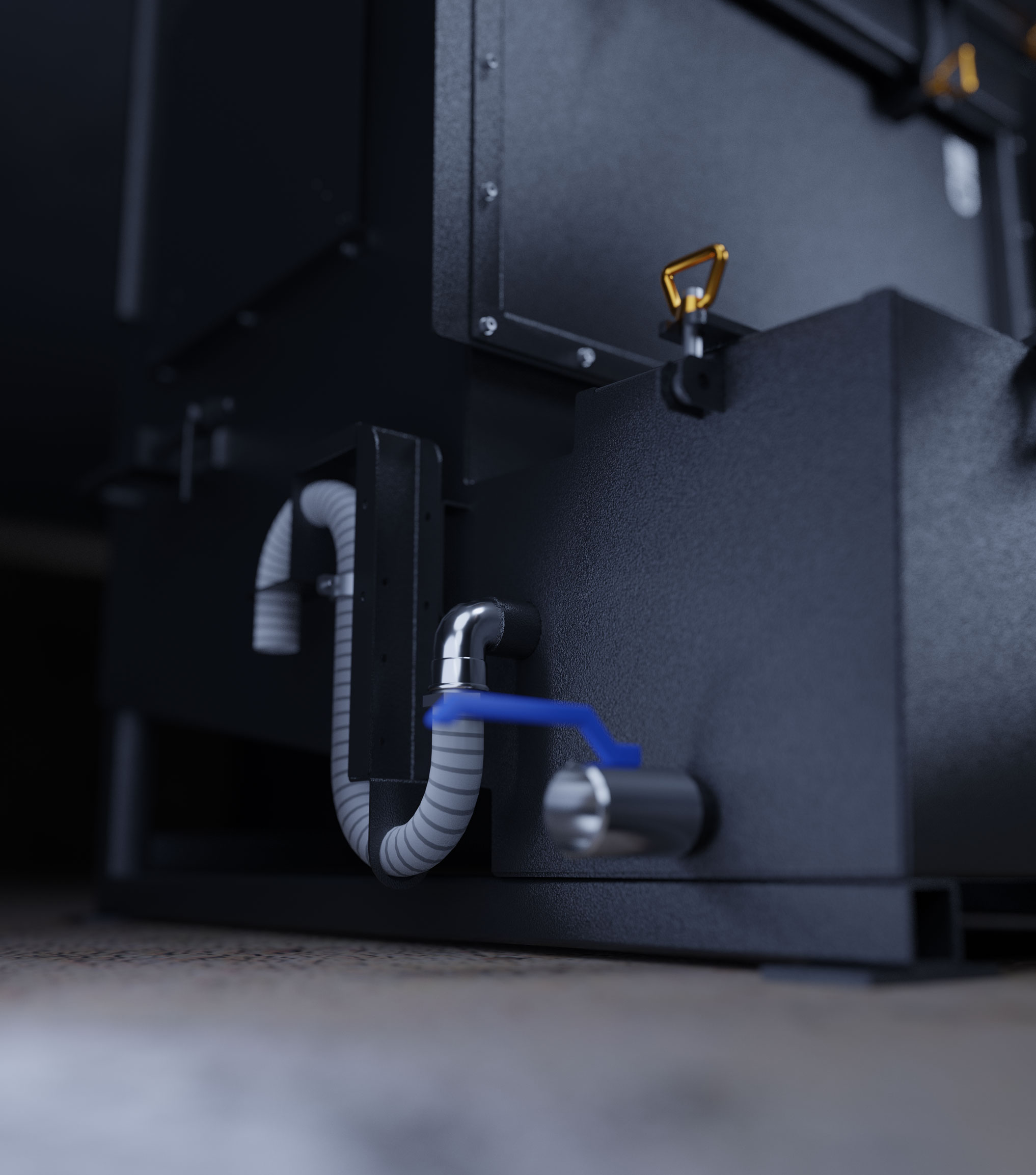

The extracted dust particles depose in the lower water tank and can be discharged by the ball valve which is installed at the lowest position of the unit and can be extracted through a maintenance flap.
The fan is suitable for continuous operation and is placed onto the unit by standard.
Properties
| Volumetric flow (m³/h): | 1.500 |
|---|---|
| Engine power (kW): | 1,5 |
| Supply voltage (V): | 400 |
| Connection frequency (Hz): | 50 |
| Current consumption (A): | 3,5 |
| Current type: | 3Ph+N+PE |
| Filter control: | Wasserstandskontrolle, Differenzdruck-Überwachung |
| Engine control: | motor protection switch |
| Ventilatoraufbau: | auf der Anlage |
| Separation efficiency (%): | > 80 (für Grobstaub) |
| Sound level (dB(A)): | 75 |
| Weight (kg): | 450 |
| Width (mm): | 850 |
| Depth (mm): | 1.160 |
| Height (mm): | 2.660 |
| Colour: | RAL 7016 |
| Wasserfüllmenge bei Betrieb (l): | ca. 200 |
| Wasserverbrauch (l/h): | ca. 4 |
