Ventilation solutions

Ventilation and air conditioning solutions ensure clean air in halls and filter pollutants as well as smoke and dust that have not been captured by localised extraction systems, for example.  At the same time, they help to save energy, as heat recovery can effectively reduce heating costs.   There are different ventilation and air conditioning solutions depending on the application requirements and size of the hall. The product range extends from standalone filter towers to complete systems with pipework.

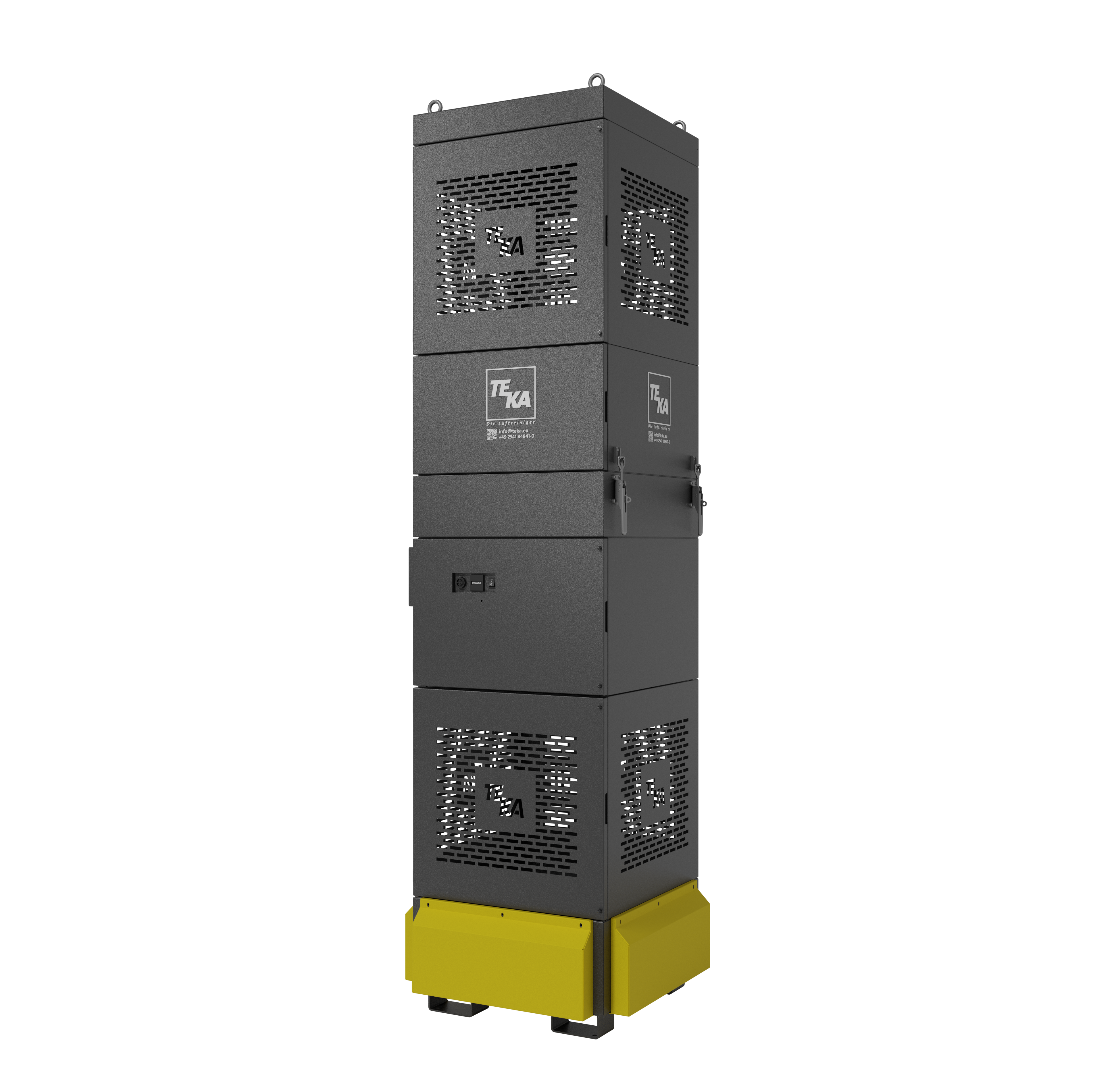

CleanAirCube

The CleanAirCube is ideal for use in industrial and logistics halls.

Set up, plug in, produce clean air: That's how easy the room ventilation standalone solution works.

Little energy, great effect: with just over half a kilowatt of power, the filter tower cleans up to 8,000 m³/h of air.

CleanAirCube: The perfect addition for clean air in the workplace.

max. fan volume flow8.000 m³/h
Power output550 W
Voltage230 V/50 Hz
Separation efficiency> 99%
Current consumption4 A
Sound level65 dB(A)
Dimensions (W x D x H)865 x 682 x 2,778 mm


AirTech P10

The AirTech P10 is the solution for clean indoor air.

Specially developed for industrial operations: Cleans where no localised extraction can be implemented or as an additional room air solution.

Intelligent air routing: Air containing pollutants is captured via lateral intake ducts, filtered and then returned to the work area via jet nozzles.

Compact room air solution: Compared to push-pull and similar systems, as little floor space and no additional pipework are required.

Effectively save heating costs: Heat recirculation ensures warm halls even in winter without additional heating.

State-of-the-art filter technology: Long filter service life thanks to high-quality filter material, large filter surface and automatic cleaning as required IFA-W3 certified: Guaranteed separation of over 99% of pollutants.

max. fan volume flow10.000 m³/h
Power output11.0 kW
Degree of separation≥ 99 %
Dimensions800 x 1200 x 3990 mm


AirTech

The AirTech is the perfect addition for businesses where point extraction is not sufficient.

Effectively save heating costs: Heat recirculation ensures that the expensively heated hall air can remain in the hall.

State-of-the-art filter technology: Long filter service life thanks to high-quality filter material, large filter surface and automatic cleaning as required.

Different sizes for every requirement: Depending on the volume of smoke and the size of the hall , high air exchange rates can also be achieved.

Now minimise the pollutant load in the hall air with AirTech concepts and ensure clean hall air. IFA-W3 certified: Guaranteed separation of over 99% of pollutants.

max. fan volume flow18.000-30,000 m³/h
Motor power11.0 - 22.0 kW
Separation efficiency≥ 99 %
Filter area324 m² - 432 m²

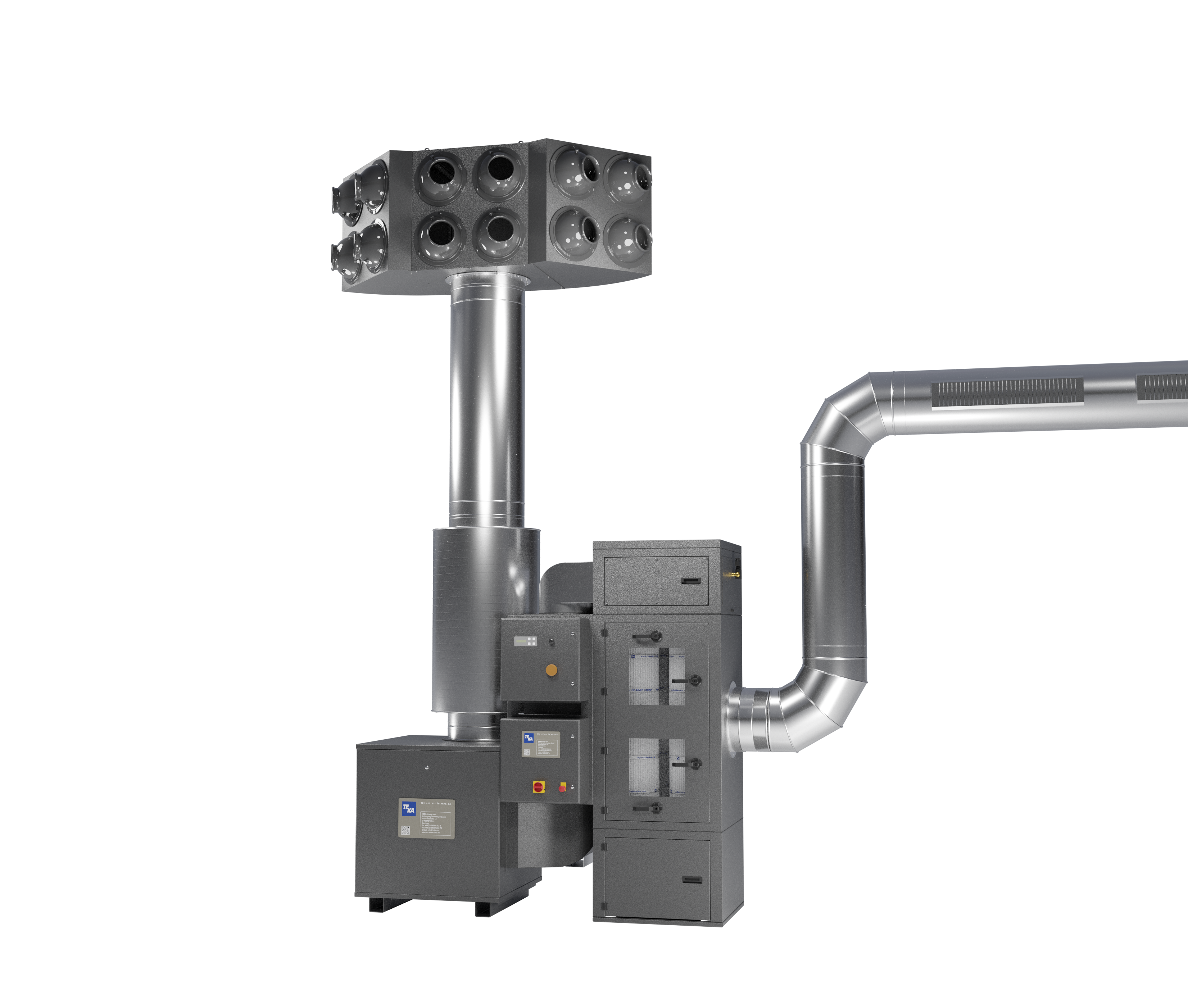

Blowtec

BlowTec is the ventilation and air conditioning solution that adapts to the installation situation.

Customised thanks to its modular design: The system can be installed in any hall and ensures maximum air purity.

The perfect complement to point extraction: Permanent recirculation of clean air ensures a noticeable improvement in the hall air.

Effectively save heating costs: Heat recirculation ensures warm halls even in winter without additional heating.

From the pipe into the system back into the hall: Project-specific pipework is customised to the situation on site.

 State-of-the-art filter technology: Long filter service life thanks to high-quality filter material, large filter surface and automatic cleaning as required.

Customised and suitable for every hall - contact BlowTec now for your personal room air solution.

max. fan volume flow7.500-10,000 m³/h
Power output7.5-11.0 kW
Separation efficiency≥ 99 %
Filter area100 m²

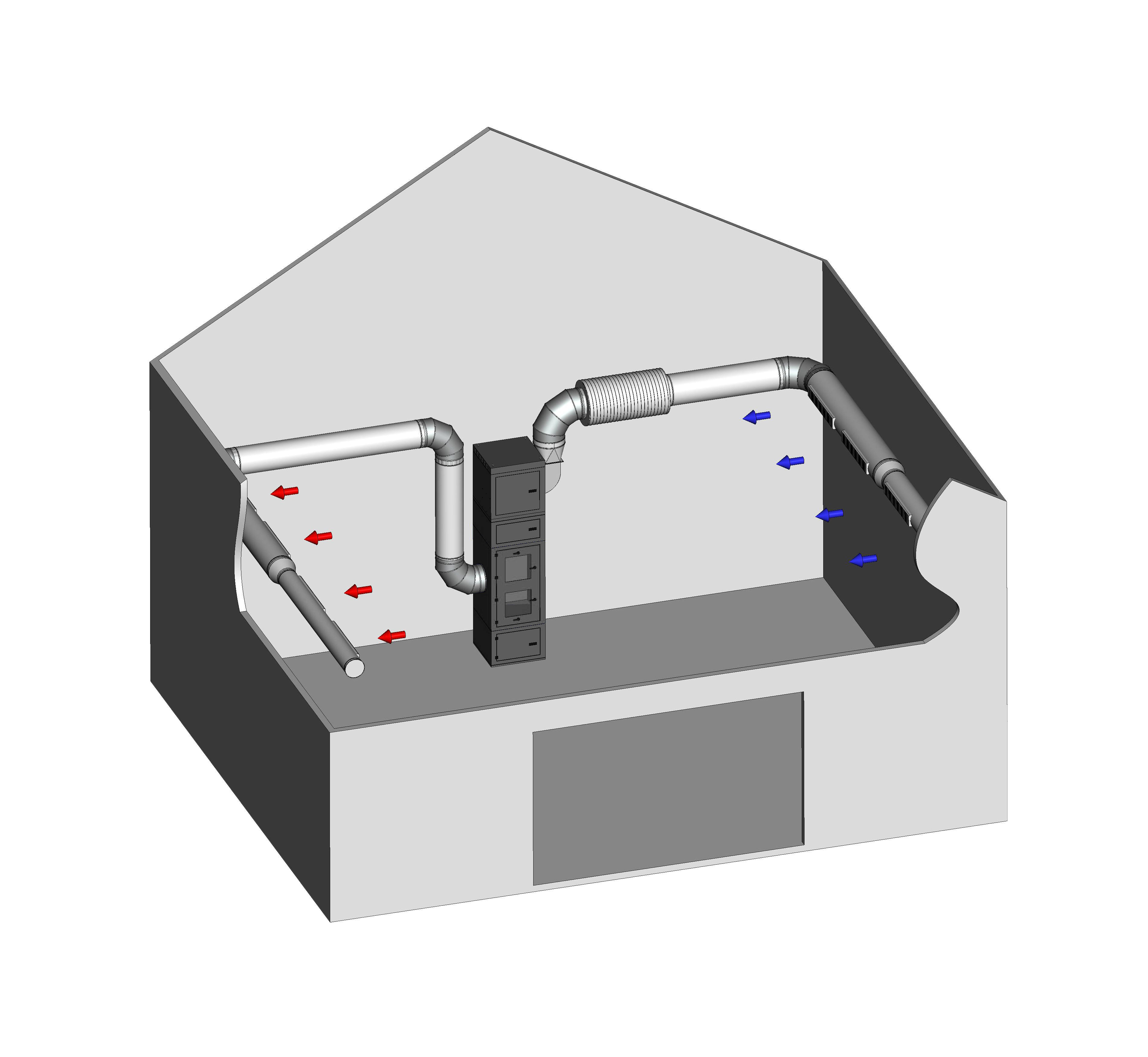

PushPull

The PushPull ventilation solution is the perfect addition for businesses where point extraction is not sufficient.

Cleaning through smart air routing: Contaminated air is drawn in on one side and cleaned and returned on the opposite side.

Continuous capture of pollutants: The room climate is sustainably improved by the continuous and even air flow.

The perfect complement to point extraction: Permanent recirculation of clean air ensures a noticeable improvement in the hall air.

Effectively save heating costs: Heat recirculation ensures warm halls even in winter without additional heating.

From the pipe into the system back into the hall: Project-specific pipework is customised to the situation on site.

State-of-the-art filter technology: Long filter service life thanks to high-quality filter material, large filter surface and automatic cleaning as required.


max. fan volume flow7.500 - 10,000 m³/h
Motor power7.5 - 11.0 kW
Separation efficiency≥ 99 %
