CareMaster IFA
EAN: 4251906207284
TEKA CareMaster IFA – Mobile Extraction Unit for Clean Air During Welding
The TEKA CareMaster IFA is the ideal mobile extraction unit for professional welding applications. Designed to effectively eliminate welding fumes and fine dust, this powerful system ensures clean air in the workplace, enhancing the safety and health protection of your employees. With an IFA certification for welding fume class W3 and an impressive separation efficiency of over 99%, the CareMaster IFA is perfect for use with unalloyed and stainless steel materials.
Your Benefits at a Glance:

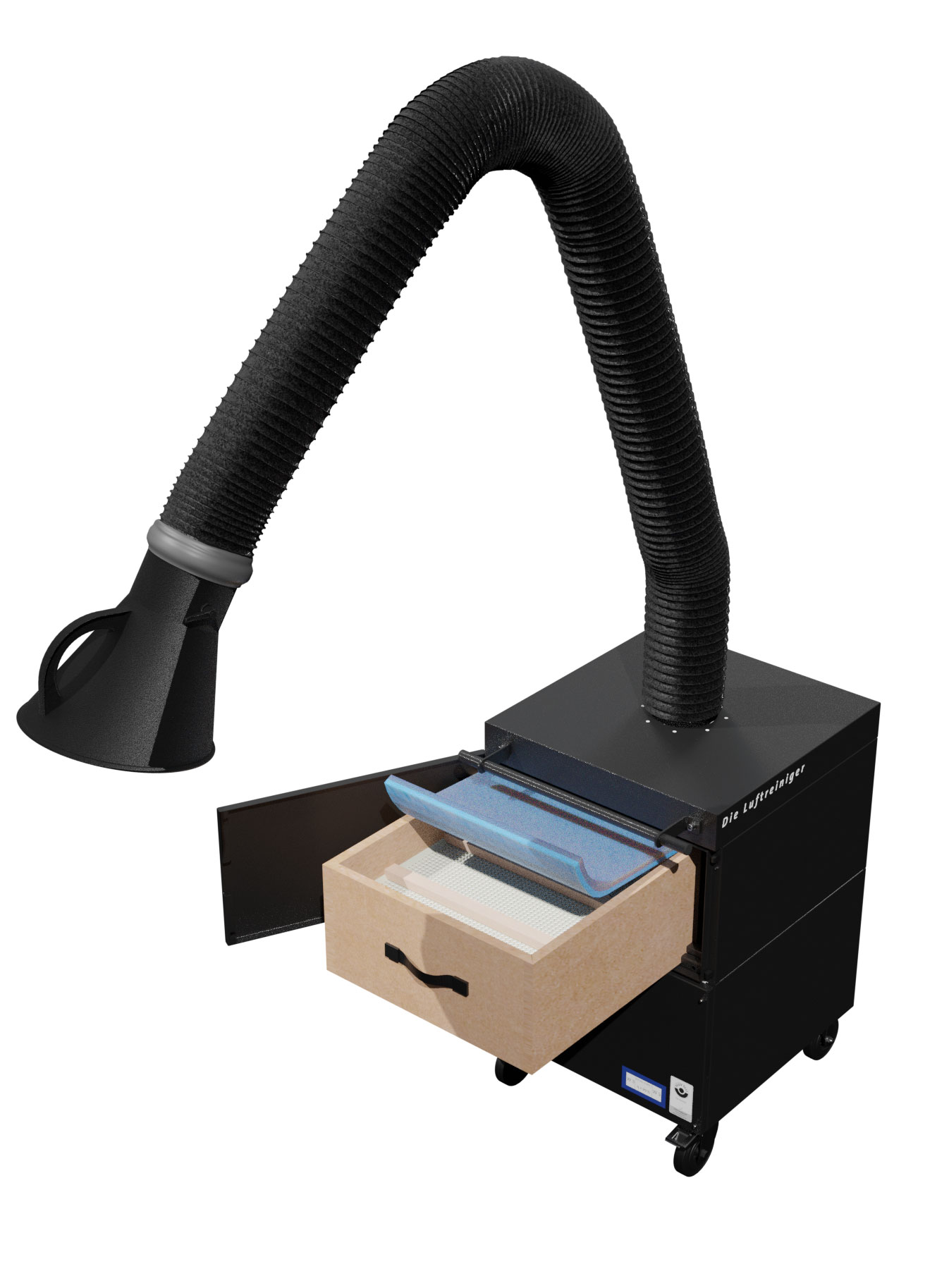

- Highly Effective Filtration Technology: The CareMaster IFA features an M5 pre-separator and an F9 main filter, providing effective air purification.
- Flexible & Mobile: Its compact design and smooth-running casters make the CareMaster IFA ideal for use in different locations within workshops and production environments.
- Easy Handling: Thanks to intuitive operation and optional features such as automatic on/off switching or integrated lighting, the unit is particularly user-friendly.
Efficient Air Purification for the Highest Demands
With a maximum fan capacity of 2,500 m³/h and a pressure of up to 2,500 Pa, the CareMaster IFA effortlessly handles even demanding applications. The purified air is returned directly to the work area, eliminating the need for additional ventilation. This not only saves energy costs but also makes the unit highly efficient.
Despite its powerful performance, the CareMaster IFA operates quietly with a noise level of around 72 dB(A). The unit is designed to operate with a 400 V power supply and has a robust construction that withstands the toughest working conditions.
Ideal for:
- Welding workstations (unalloyed and stainless steels)
- Workshops and production environments
- Areas with high fine dust and fume exposure
Optimize your work environment with the TEKA CareMaster IFA – for maximum safety, clean air, and a healthy workplace.
Discover now how the CareMaster IFA can sustainably improve your working conditions!
Properties
| Volumetric flow (m³/h): | 2.500 |
|---|---|
| max. pressure (Pa): | 2.500 |
| Engine power (kW): | 1,1 |
| Supply voltage (V): | 400 |
| Connection frequency (Hz): | 50 |
| Current consumption (A): | 2,42 |
| Current type: | 3Ph+N+PE |
| Pre-filter: | M5 |
| main filter: | F9 |
| Sound level (dB(A)): | ca. 72 |
| Weight (kg): | 122 |
| Width (mm): | 665 |
| Depth (mm): | 681 |
| Height (mm): | 995 |
| Colour: | RAL 7016 |
